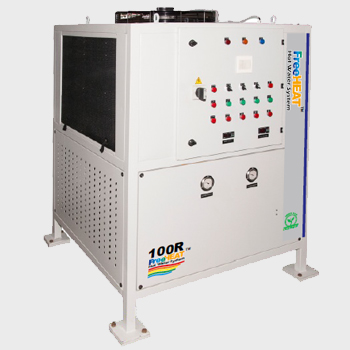

Hot Water System – P Series
Heat pumps are heavy duty, 24 x 7 usage, industrial equipment.
These are rugged, extremely reliable, and continuous duty machines.
Salient Features
Technical Specifications : ‘PI’ Series
Sr.No. |
Parameter | Models | ||
TM | TM | TM | ||
1. | Heating Capacity | 500 Liters / Hr | 750 Liters / Hr | 1000 Liters / Hr |
2. | Heating Output | 20.2Â kW | 30.5 kW | 40.4 kW |
3. | Electrical Power Input | 6.3Â kW | 9.24 kW | 12.2 kW |
4. | C.O.P. | 3.2 | 3.3 | 3.3 |
5. | Refrigerant | R-407C | R-407C | R-407C |
6. | Max. Temperature | 60 deg. C | 60 deg. C | 60 deg. C |
7. | Electrical Supply | 415 V, 50 Hz, 3 Ph | 415 V, 50 Hz, 3 Ph | 415 V, 50 Hz, 3 Ph |
8. | Compressor | Scroll | Scroll | Scroll |
9. | Condenser | Tube in Tube type | Tube in Tube type | Tube in Tube type |
10. | Evaporator | Forced convection air cooled | Forced convection air cooled | Forced convection air cooled |
11. | Evaporator Fan | Axial flow type | Axial flow type | Axial flow type |
