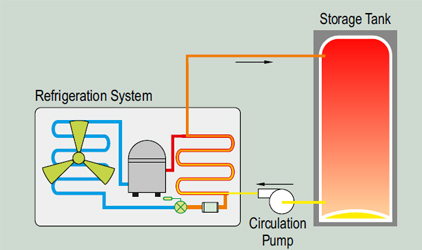

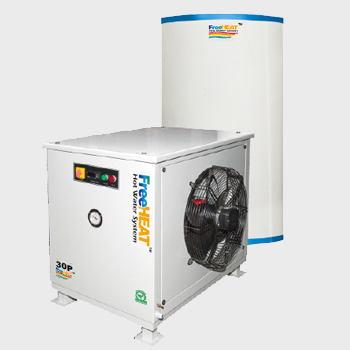

Hot Water System – P Series air to water heat pump utilizes co-axial tube in tube condenser coils with,
circulation pump for the water medium. It results in high turbulence, highest heat transfer rate and maximum C.O.P.
Salient Features
Technical Specifications : ‘P’ Series
S. No |
Parameter |
| |||||
10P | 15P | 20P | 30P | 40P | 50P | ||
1. | Heating Capacity | 100 LPH | 150 LPH | 200 LPH | 300 LPH | 400 LPH | 500 LPH |
2. | Heating Output | 4.1 kW | 6.1 | 8.2 kW | 12.2 kW | 16.8 kW | 20.2 kW |
3. | Electrical Input | 1.28 | 1.91 | 2.56 kW | 3.8 kW | 5.25 kW | 6.3 kW |
4. | C.O.P. | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 |
5. | Refrigerant | R22/R410a/R407C | R22/R410a/R407C | R134a/R407C | R407C | R407C | R407C |
6. | Max. Temp. | 60 deg.C | 60 deg.C | 60 deg. C | 60 deg. C | 60 deg.C | 60 deg. C |
7. | Supply V/Hz/PH | 230/50/1 | 230/50/1 | 230/50/1 | 415/50/3 | 415/50/3 | 415/50/3 |
8. | Compressor | Recip | Recip | Recip / Scroll | Scroll | Scroll | Scroll |
9. | Condenser | Tube in Tube | Tube in Tube | Tube in Tube | Tube in Tube | Tube in Tube | Tube in Tube |
10. | Evaporator | Forced convection air cooled | |||||
