We are Manufacturer, Supplier, Exporter of Heat Pumps, Heat Pumps P Series, Heat Pumps for Water Heater System, Industrial Heat Pumps for Water Heater, Heat Pump Hot Water Systems. Our setup is situated in Kolhapur, Maharashtra, India and majorly we serve our customers from all over India, Asia

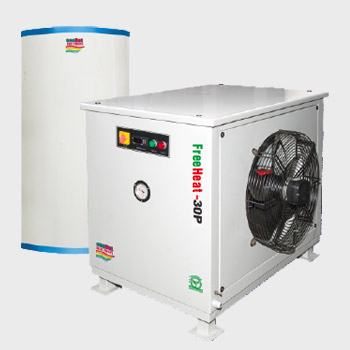

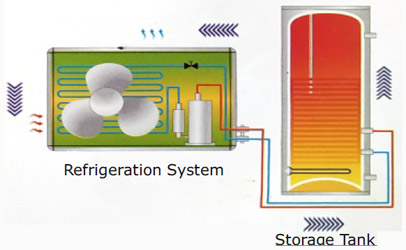

P Series air to water heat pump utilizes co-axial tube in tube condenser coils with, circulation pump for the water medium. It results in high turbulence, highest heat transfer rate and maximum C.O.P.
Salient Features
Technical Specifications : P Series
| Sr. No. | Parameter | Models | ||
| Free-Heat-20D | Free-Heat-30D | Free-Heat-50D | ||
| 1 | Heating Capacity | 200 Liters / Hr | 300 Liters / Hr | 500 Liters / Hr |
| 2 | Heating Output | 8.2 kW | 12.2 kW | 20.2 kW |
| 3 | Electrical Power Input | 2.56 kW | 3.8 kW | 6.3 kW |
| 4 | C.O.P. | 3.2 | 3.2 | 3.2 |
| 5 | Refrigerant | R-134a / R-407C | R-407C | R-407C |
| 6 | Max. Temperature | 60 deg. C | 60 deg. C | 60 deg. C |
| 7 | Anode | Mg | Mg | Mg |
| 8 | Electrical Supply | 230 V, 50 Hz, 1 Ph | 415 V, 50 Hz, 3 Ph | 415 V, 50 Hz, 3 Ph |
| 9 | Compressor | Recip. / Scroll | Scroll | Scroll |
| 10 | Condenser | Shell & Coil type | Shell & Coil type | Shell & Coil type |
| 11 | Evaporator | Forced convection air cooled | Forced convection air cooled | Forced convection air cooled |
| 12 | Evaporator Fan | Axial flow type | Axial flow type | Axial flow type |
